There are a bunch of factors that, in a production setting, would make it harder to make and provide upkeep a drafting like this. This is taking information from an existing .pdf and remaking it— No referenced files, no split time between drafting and other duties, no keeping watch for conflicts with scenery, etc. At the end of the day, really simple, and a best-practice example for as-built drawings.
This reflects my best quality of drafting on its own. Let me know what you think!

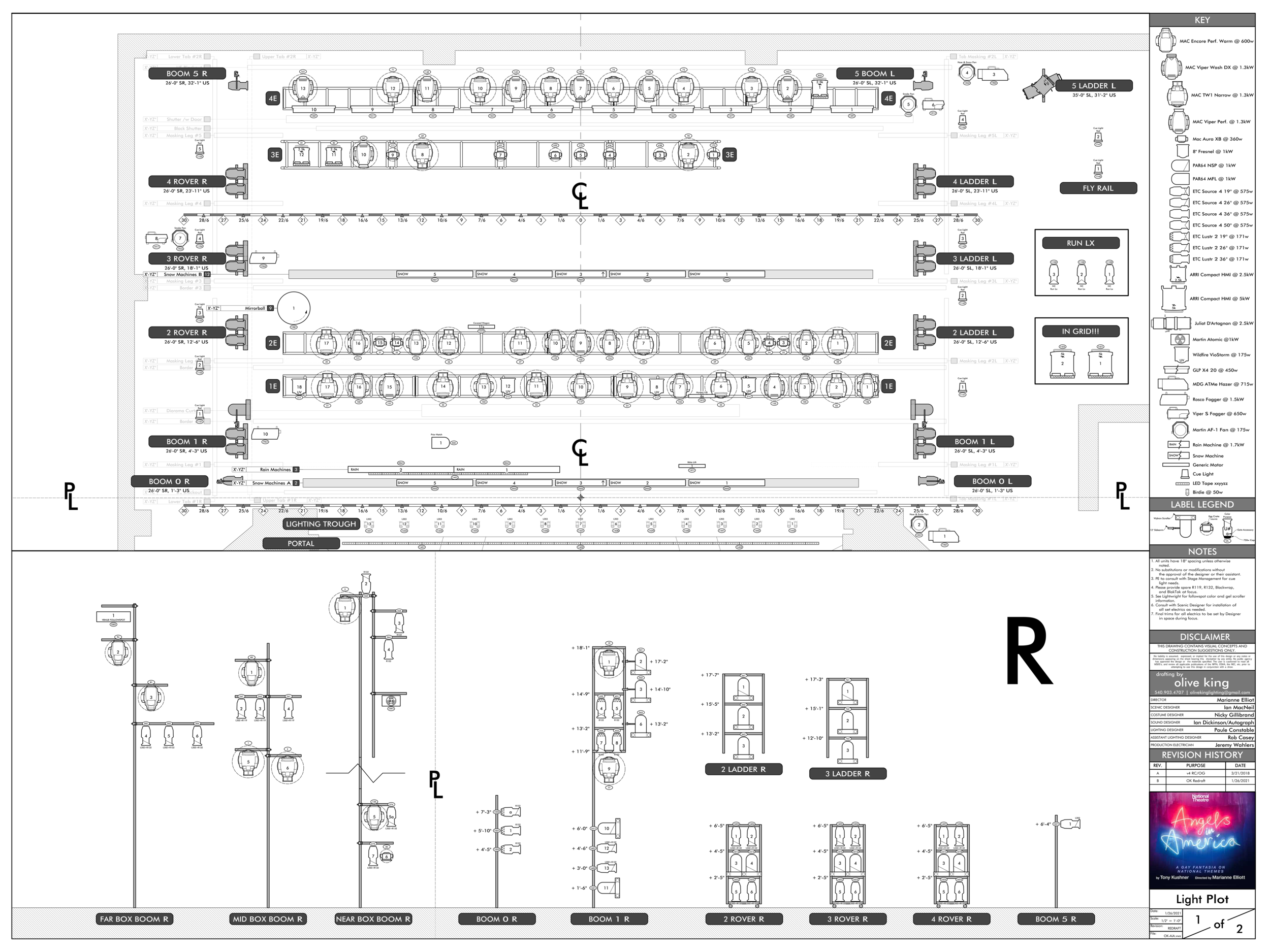

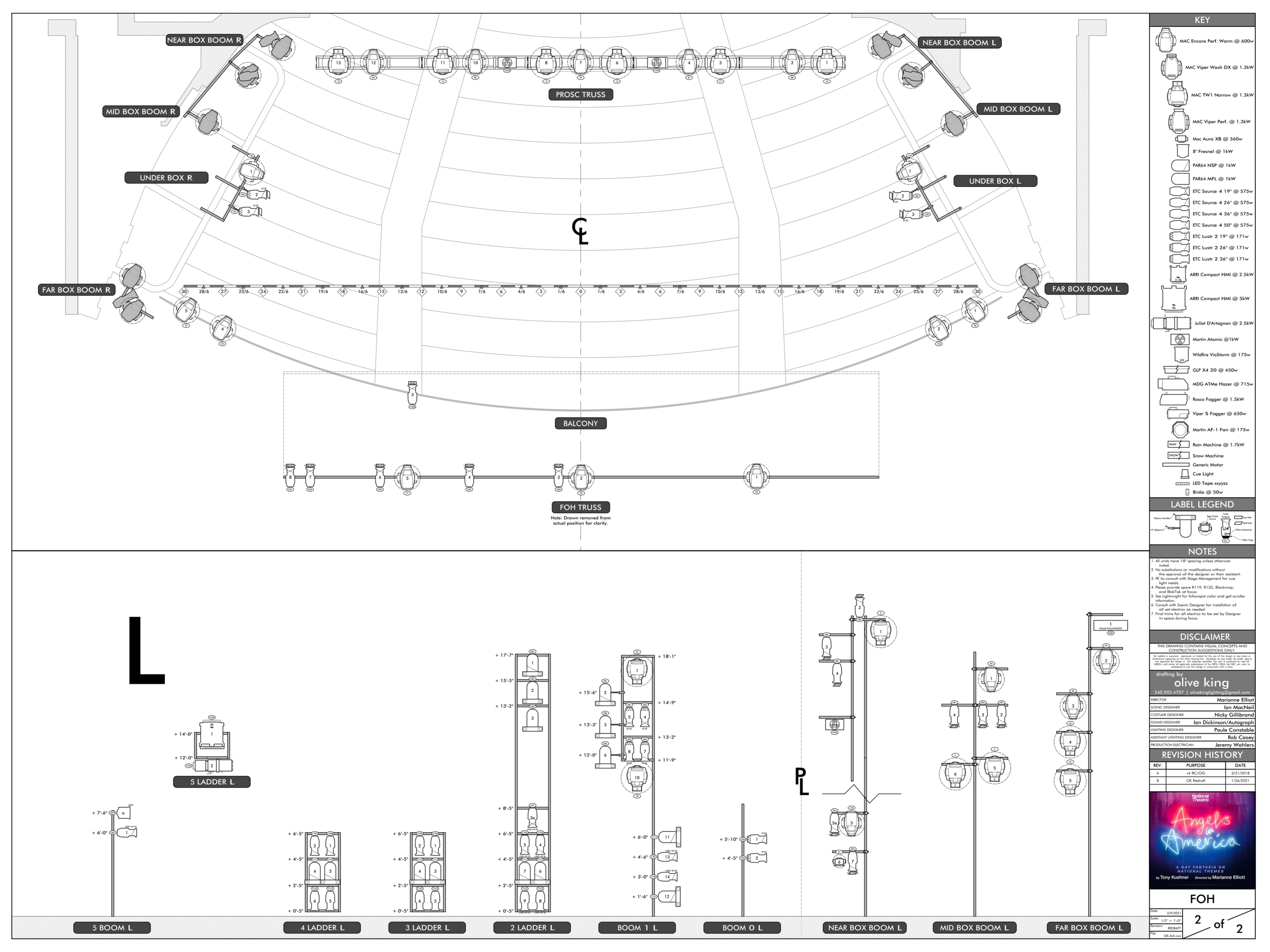

Click to open a plate in a new tab, or use the downloads on the right.
The .vwx is entirely purged, but you can still inspect my class/layer structure (or what’s left of it.)
Note: Lineset numbers and trims are placeholders due to lack of info. Unit numbers are retained from the original drawing.
